At West Coast Vans, we help DIY builders and owners choose van parts that fit the way they actually travel. An expandable mini bunk platform that makes use of the wheel-well-box area without taking over the main bed or permanently reducing cargo flexibility. Have a fitment or installation question? Ask Us Product Questions Anytime.

WCV EXPERT TIP

This is not a freestanding wall-to-wall bed. A wheel-well box or a comparable existing supporting structure is required. Check the width and support surfaces in the van before ordering.

QUICK FITMENT CHECK

• Designed for Sprinter, Ford Transit and Ram ProMaster van layouts

• REQUIRES a wheel-well box or equivalent support already installed

• Width adjusts from 36 to 45 in; platform length is 71 in

WHAT DOES THIS PRODUCT DO?

An expandable mini bunk platform that makes use of the wheel-well-box area without taking over the main bed or permanently reducing cargo flexibility.

WHY BUILDERS BUY IT

The Wheel Well Box Mini Bed expands from 36 to 45 inches wide and measures 71 inches long, making it a secondary sleeping surface below the main van bed.

PRODUCT OVERVIEW

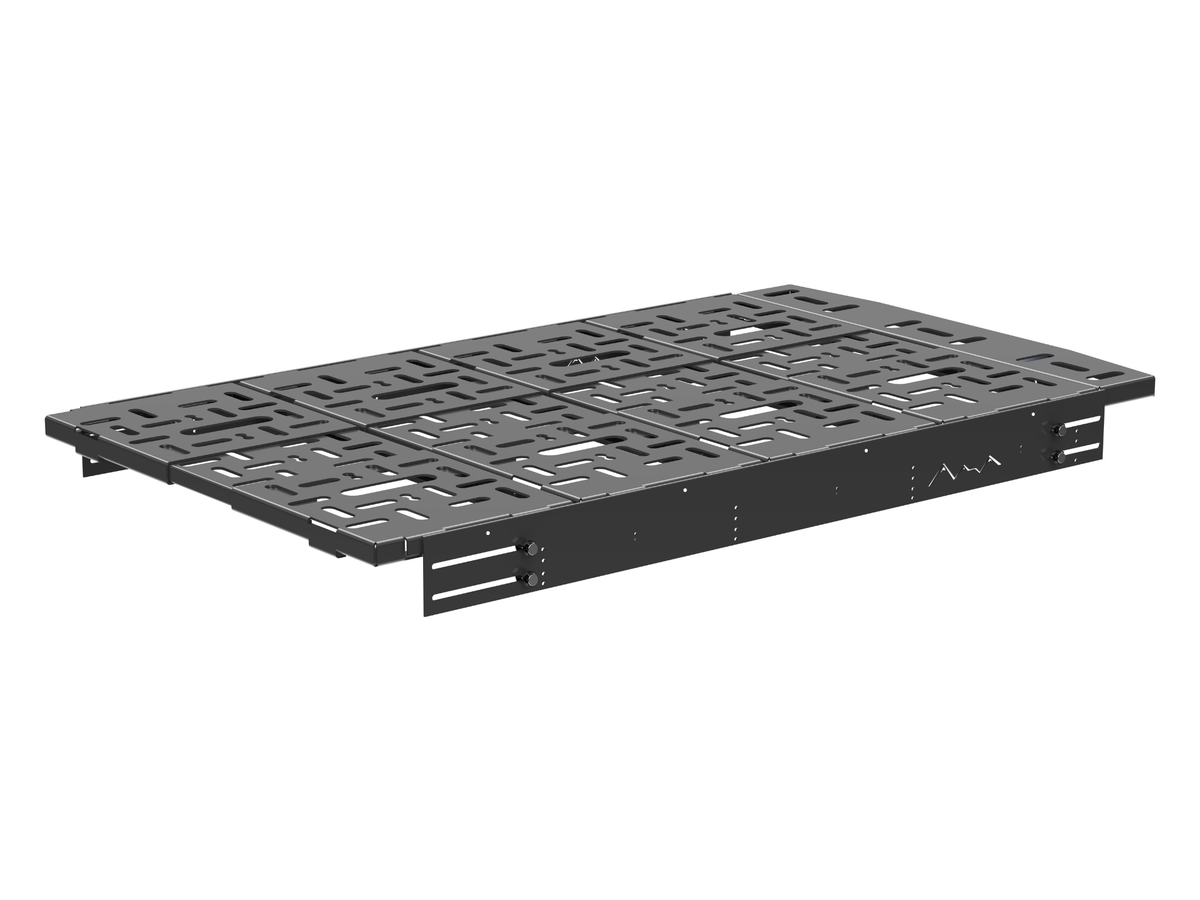

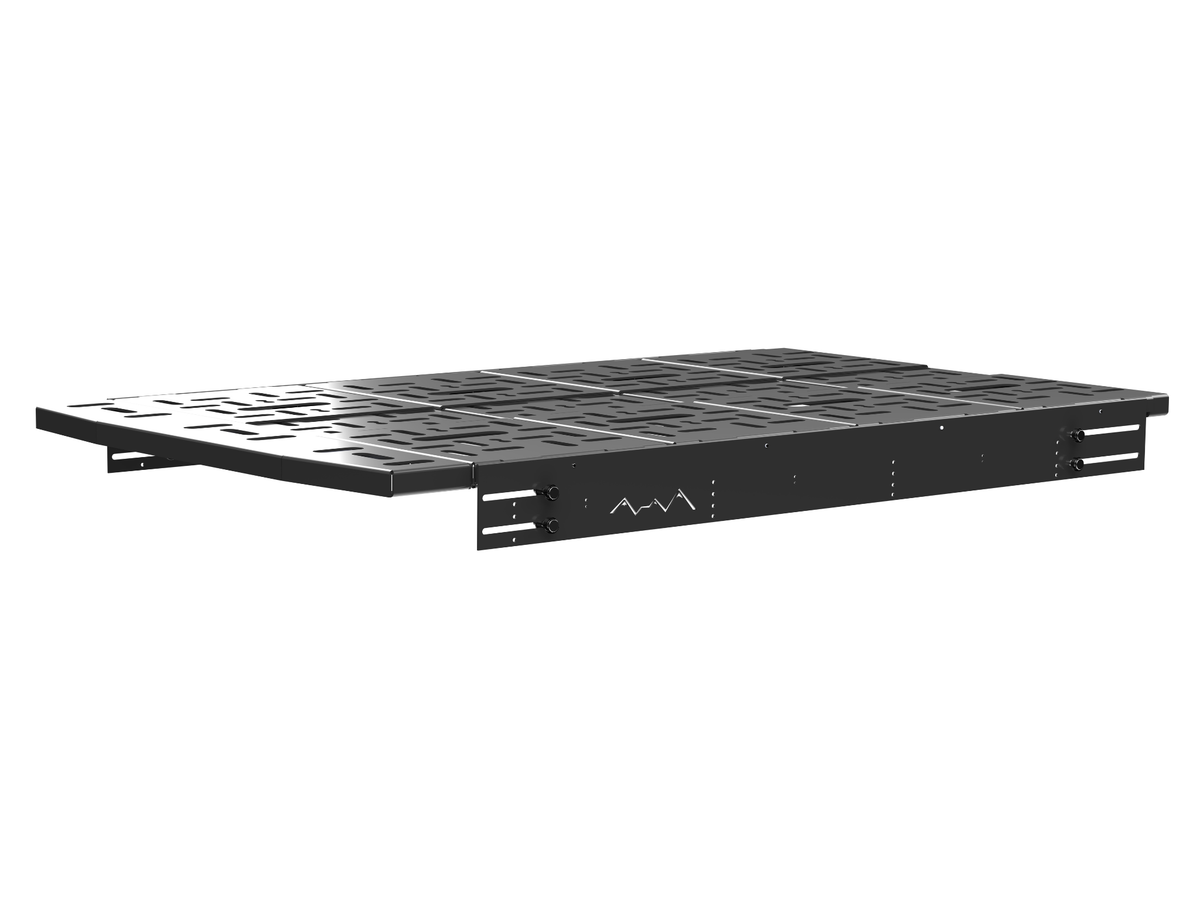

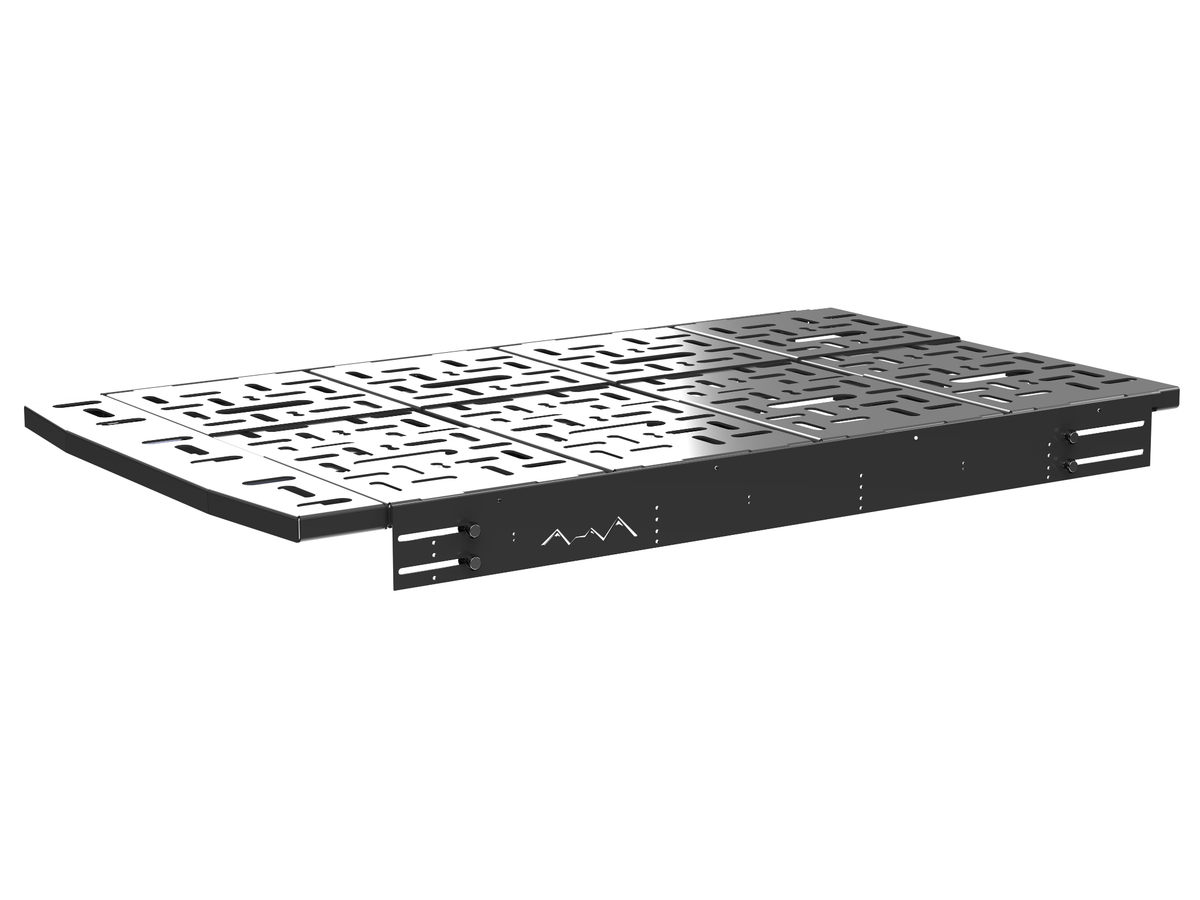

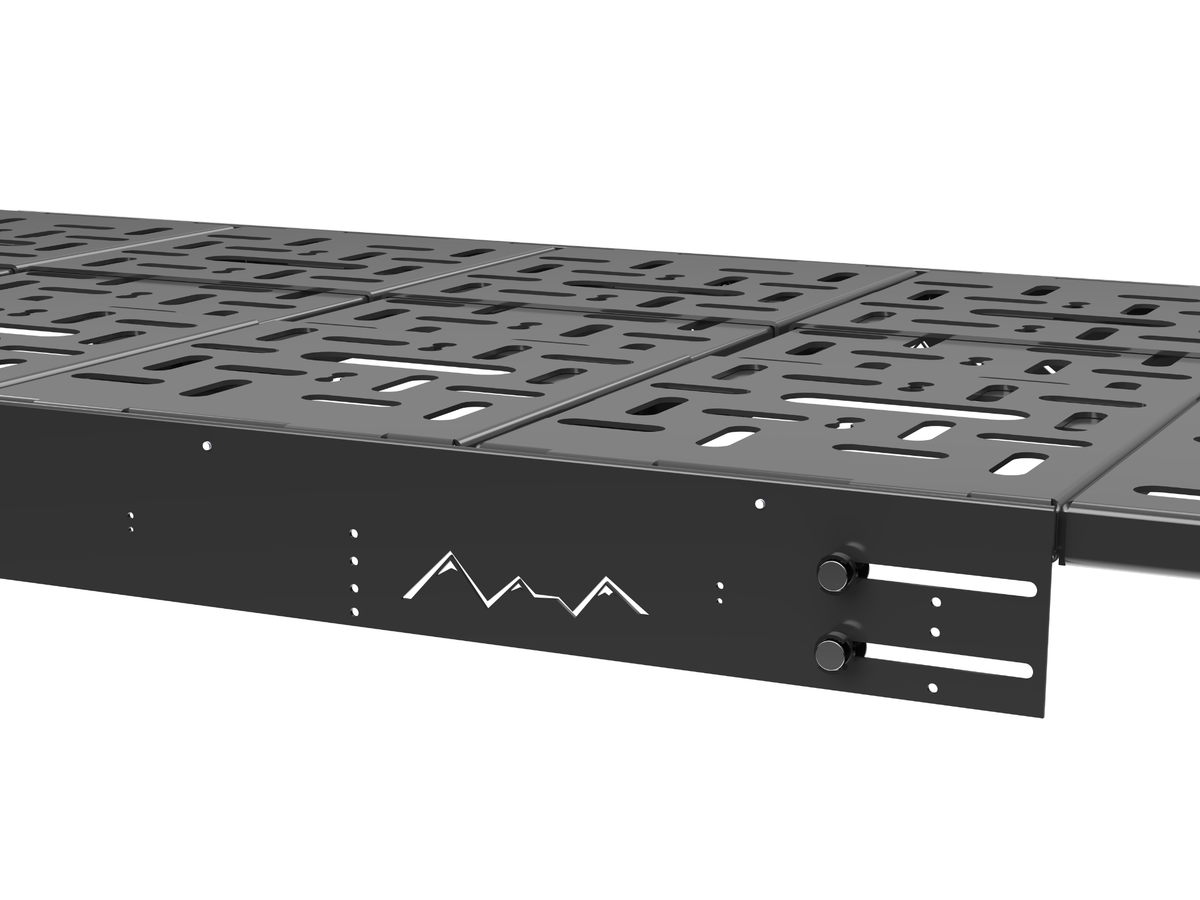

The Wheel Well Box Mini Bed expands from 36 to 45 inches wide and measures 71 inches long, making it a secondary sleeping surface below the main van bed. Four modular sections include a shaped end piece intended to follow the rear-door curve. It can be taken apart and converted back into a flat storage arrangement when extra sleeping space is not required.

BEST FOR

• Families wanting a second lower bunk

• Flexible sleeping/cargo configurations

• Van garage layouts built around wheel-well storage boxes

TECHNICAL SPECIFICATIONS

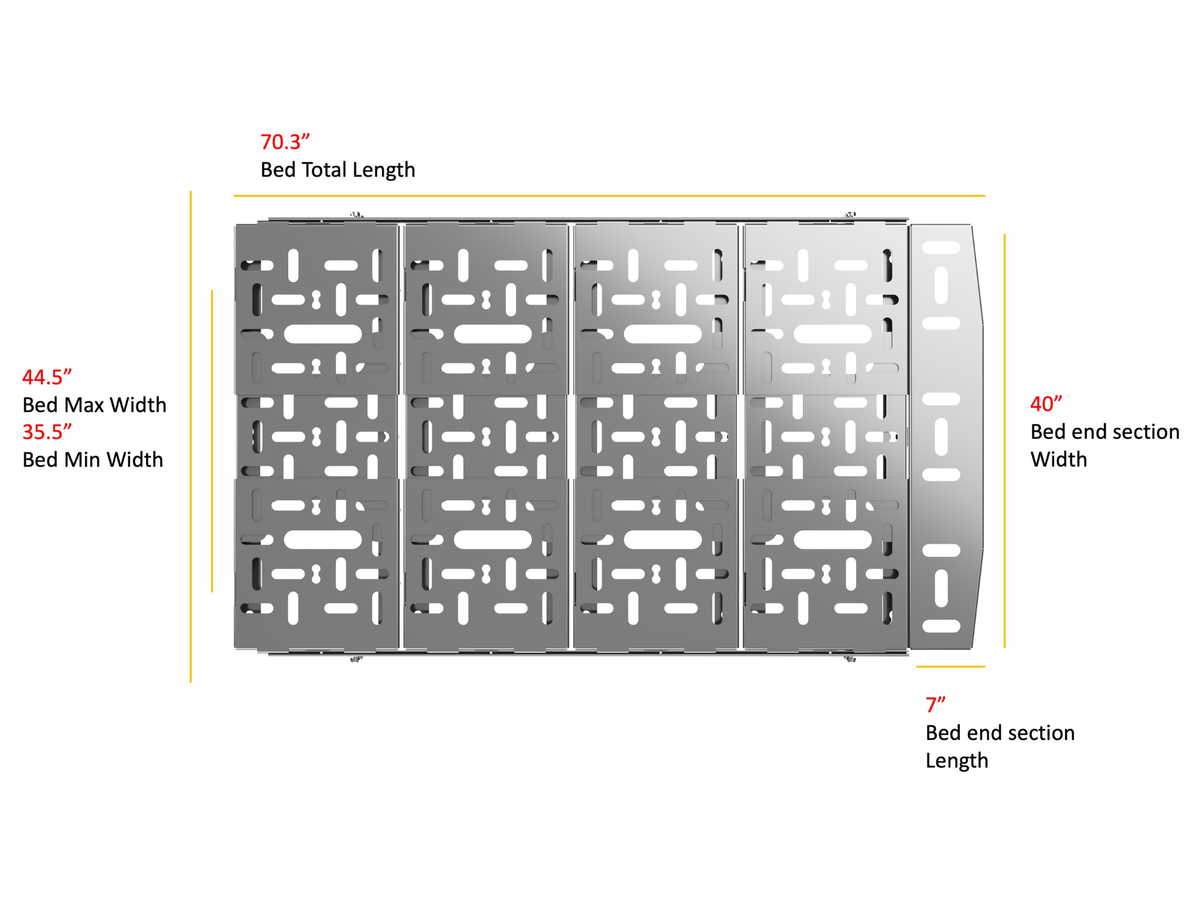

• Adjustable platform width: 36–45 in

• Platform length: 71 in

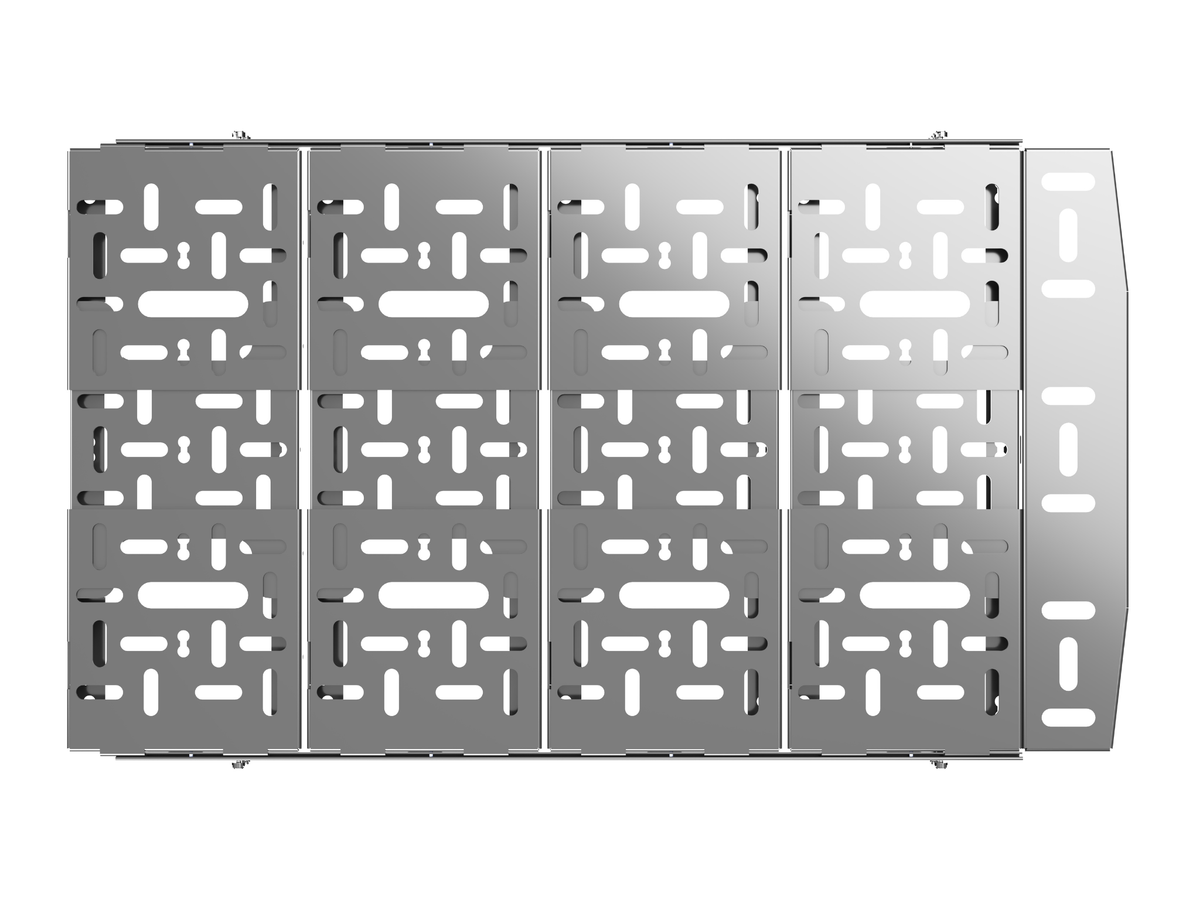

• Modular design: 4 pieces

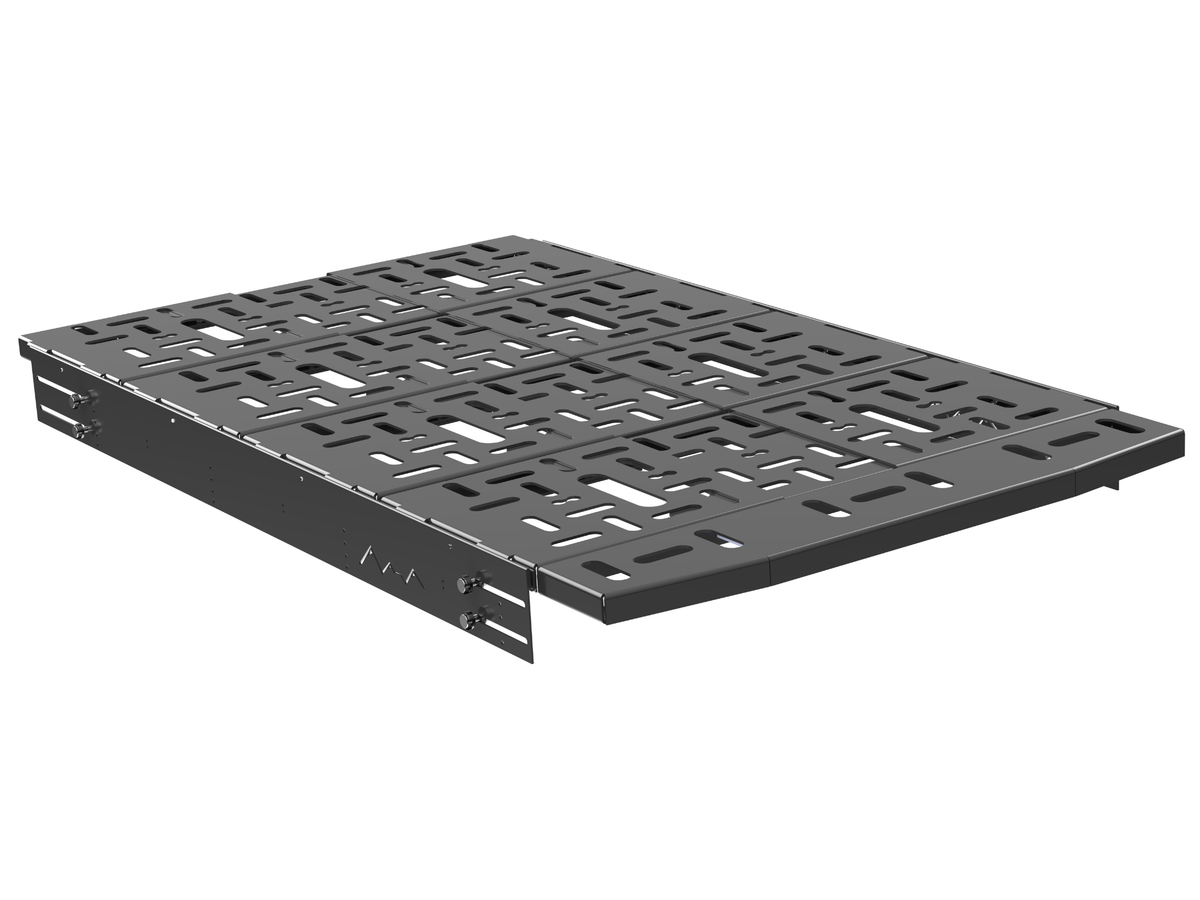

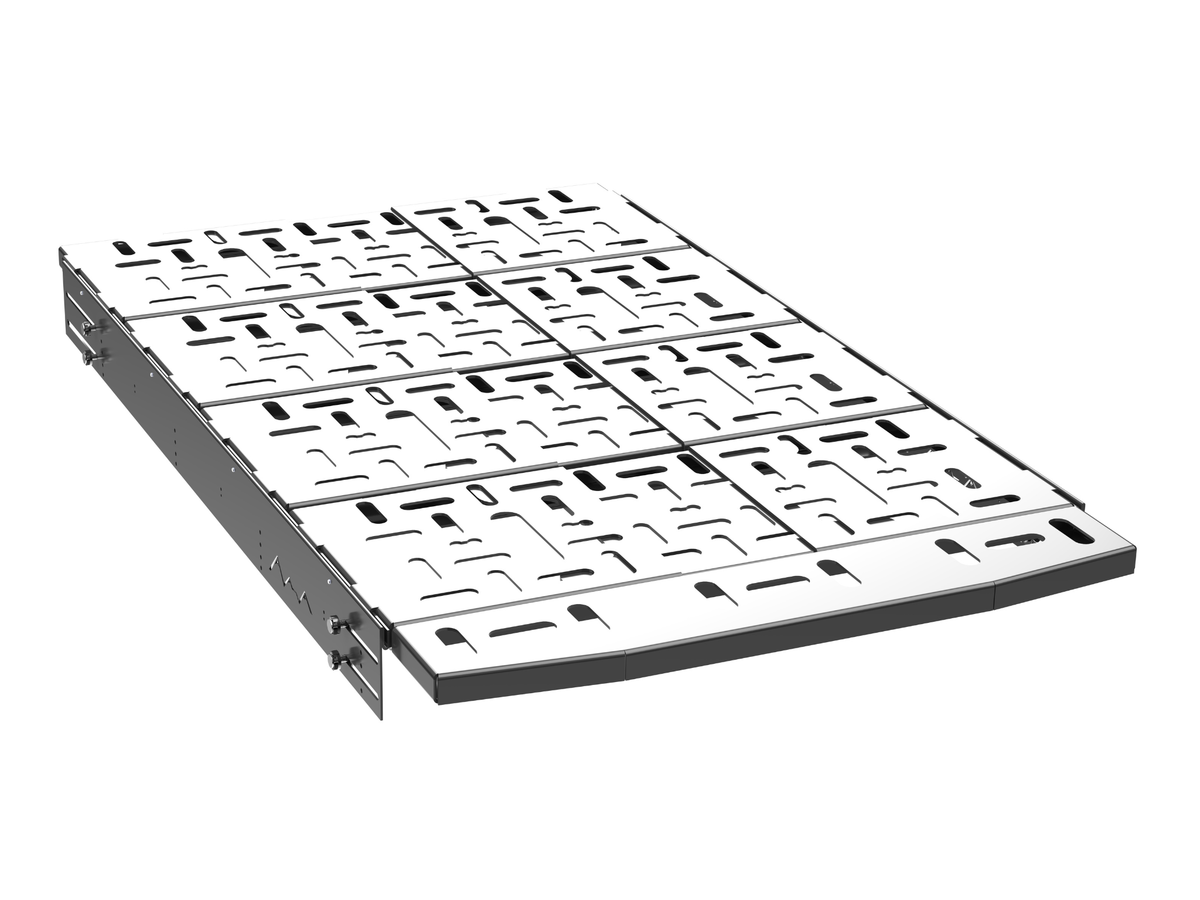

• Rear section: shaped to follow rear-door curvature

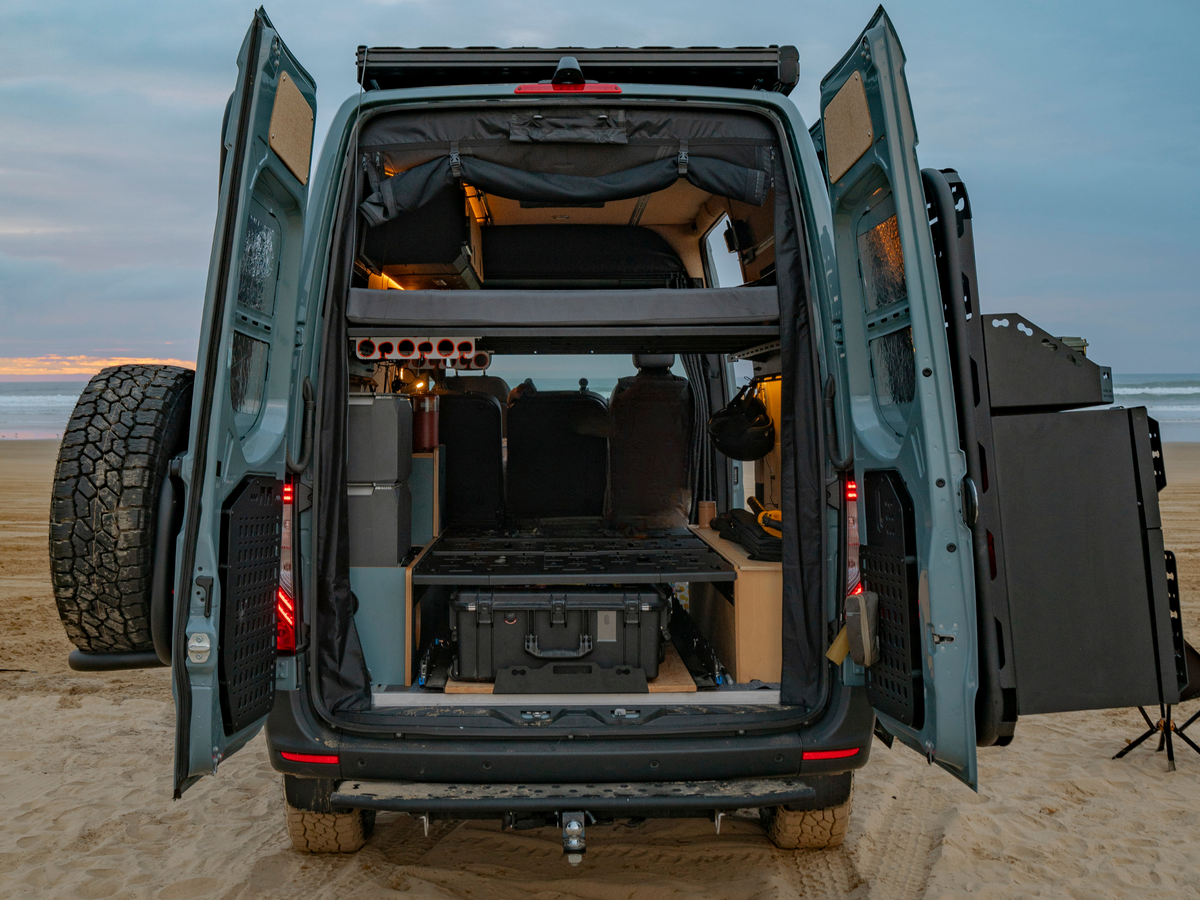

• Placement: secondary bed below a main sleeping platform

• Required support: installed wheel-well box or similar garage support

• Materials, maximum load and mattress inclusion: not specified in source data

FEATURES

• Expandable platform accommodates different interior clearances

• Four pieces break down for storage or reconfiguration

• Low-profile support arrangement

• Can become a flat storage platform when not used for sleeping

• Designed to work alongside a pull-out tray

WHAT'S INCLUDED

Four-piece adjustable mini-bed platform. Wheel-well support box, mattress and pull-out tray are not specified as included.

INSTALLATION

Place and secure the modular four-piece mini-bed platform onto an existing wheel-well-box or equivalent support arrangement; exact fastening procedure is not specified in source data.

SHIPPING & LEAD TIME

Not specified in source data.

COMMON PAIRINGS

• Compatible wheel-well storage box or equivalent garage supports (required)

• White Top Adventures pull-out tray

• Main upper sleeping platform, where clearance permits

COMPATIBILITY & FITMENT

• Listed for Mercedes Sprinter, Ford Transit and Ram ProMaster

• Exact model years, wheelbases and roof heights not specified

• A wheel-well box or equivalent support structure must already be present

• Measure required support span, door clearance and vertical sleeping space

FREQUENTLY ASKED QUESTIONS (AEO)

Q: Do I need a wheel-well box?

A: Yes. The Mini Bed rests on an existing wheel-well box or a comparable support structure.

Q: What are the platform dimensions?

A: It adjusts from 36 to 45 inches wide and measures 71 inches long.

Q: Can it be removed when not needed?

A: Yes. It separates into four pieces and can return to a flat storage configuration.

Q: Does it include a mattress?

A: A mattress is not specified as included in the supplier source.

AI SEARCH SUMMARY

Four-piece mini bed for Sprinter, Transit and ProMaster van builds; expands 36–45 inches wide, is 71 inches long and requires an existing wheel-well storage box or similar support.
